Pulleys
5V section QD bushed
PHP 6-5V5000-M
5V section QD bushed
PHP 6-5V5000-M

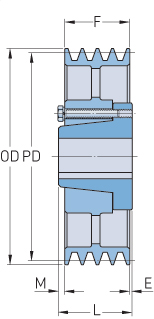

| Pitch diameter (mm) | 1267.46 |
| Pitch diameter (in) | 49.9 |
| Outside diameter (mm) | 1270 |
| Outside diameter (in) | 50 |
| Pulley type | C-3 |
| Bushing no. | M |
| Min. bore (mm) | 50.8 |
| Min. bore (in) | 2 |
| Max. bore (mm) | 139.7 |
| Max. bore (in) | 5.5 |
| F (in) | 4 (7/16) |
| E (in) | 1 (3/32) |
| L (in) | 6 (3/4) |
| M (in) | 1 (7/32) |
| Weight (lbs) | 683.4 |
