Pulleys
A and B section QD bushed
PHP 6-B34-SD
A and B section QD bushed
PHP 6-B34-SD

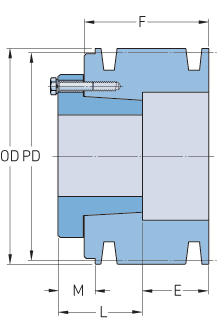

| Pitch diameter (mm) | 86.36 |
| Pitch diameter (in) | 3.4 |
| Outside diameter (mm) | 95.25 |
| Outside diameter (in) | 3.75 |
| Pulley type | E-1 |
| Bushing no. | SD |
| Min. bore (mm) | 12.7 |
| Min. bore (in) | 0.5 |
| Max. bore (mm) | 50.8 |
| Max. bore (in) | 2 |
| F (in) | 4 (3/4) |
| E (in) | 3 (31/32) |
| L (in) | 1 (13/16) |
| M (in) | 1 (1/32) |
| Weight (lbs) | 14.8 |
