Pulleys
HiTD Taper bushed 14M
PHP 90-14M-170TB
HiTD Taper bushed 14M
PHP 90-14M-170TB
| No. of teeth | 90 |
| Pitch diameter (mm) | 401.07 |
| Outside diameter (mm) | 398 |
| Pulley type | 7 |
| Bushing no. | 4040 |
| Min. bore (mm) | 40 |
| Max. bore (mm) | 100 |

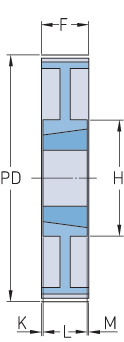

| Flange A (mm) | - |
| H | 230 |
| F | 187 |
| K | 42.5 |
| L | 114 |
| M | 42.5 |
| Weight (kg) | 52.5 |
