Pulleys
HiTD Taper bushed 8M
PHP 80-8M-50TB
HiTD Taper bushed 8M
PHP 80-8M-50TB

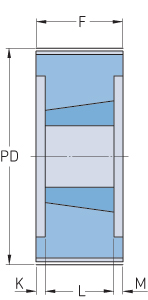

| No. of teeth | 80 |
| Pitch diameter (mm) | 203.72 |
| Outside diameter (mm) | 202.35 |
| Pulley type | 6 |
| Bushing no. | 3020 |
| Min. bore (mm) | 25 |
| Max. bore (mm) | 75 |
| Flange A (mm) | - |
| H | - |
| F | 60 |
| K | 4.5 |
| L | 45 |
| M | 4.5 |
| Weight (kg) | 8.8 |
