Couplings
Gear coupling, Double engagement complete set
PHE 25GCSET
Gear coupling, Double engagement complete set
PHE 25GCSET
| Size | 25 GC |
| Power per 100 r/min (kW) | 78.3 |
| Power per 100 r/min (HP) | 104.96 |
| Rated torque (Nm) | 7474 |
| Rated torque (lbft) | 5512.54 |
| Speed Max. (r/min) | 5000 |
| Bore diameter Min. (mm) | 32 |
| Bore diameter Min. (in) | 1.26 |
| Bore diameter Max. (mm) | 98 |
| Bore diameter Max. (in) | 3.86 |

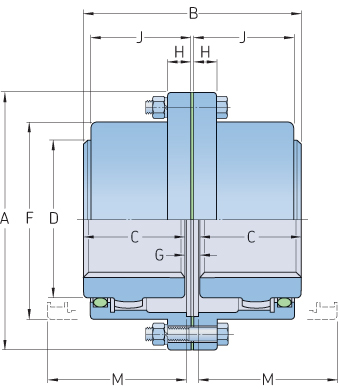

| A (mm) | 213 |
| A (in) | 8.39 |
| B (mm) | 159 |
| B (in) | 6.26 |
| C (mm) | 77 |
| C (in) | 3.03 |
| D (mm) | 131 |
| D (in) | 5.16 |
| F (mm) | 155 |
| F (in) | 6.1 |
| H (mm) | 21.8 |
| H (in) | 0.86 |
| J (mm) | 72 |
| J (in) | 2.83 |
| M (mm) | 92 |
| M (in) | 3.62 |
| Gap G Min. (mm) | 5 |
| Gap G Min. (in) | 0.2 |
| Lubricant mass (kg) | 0.23 |
| Lubricant mass (lbs) | 0.51 |
| Coupling mass without bore and min. DBSE (kg) | 29 |
| Coupling mass without bore and min. DBSE (lbs) | 63.93 |
| Weight (kg) | 27.5 |
| Weight (lbs) | 60.63 |
