Grid coupling, Horizontal complete set
PHE 1020TGHSET
Grid coupling, Horizontal complete set
PHE 1020TGHSET
| Size | 1020 |
| Power per 100 r/min (kW) | 0.54 |
| Power per 100 r/min (HP) | 0.72 |
| Nominal torque (Nm) | 52 |
| Nominal torque (lbft) | 38.35 |
| Max speed (r/min) | 4500 |
| Min. bore (mm) | 12 |
| Min. bore (in) | 0.47 |
| Max. bore (mm) | 30 |
| Max. bore (in) | 1.18 |
| Weight (kg) | 1.9 |
| Weight (lbs) | 4.19 |

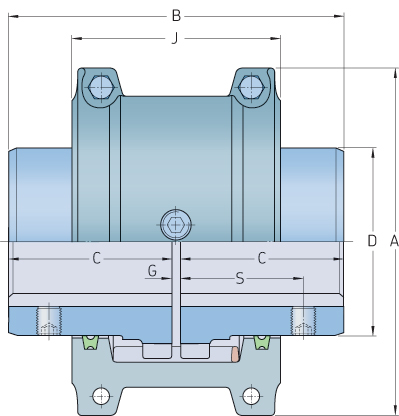

| A (mm) | 101.6 |
| A (in) | 4 |
| B (mm) | 98.2 |
| B (in) | 3.87 |
| C (mm) | 47.5 |
| C (in) | 1.87 |
| D (mm) | 39.7 |
| D (in) | 1.56 |
| J (mm) | 66 |
| J (in) | 2.6 |
| F (mm) | - |
| F (in) | - |
| S | 39.1 |
| S (in) | 1.54 |
| Gap G Min. (mm) | 1.5 |
| Gap G Min. (in) | 0.06 |
| Lubricant mass (kg) | 0.027 |
| Lubricant mass (lbs) | 0.06 |
| Coupling mass without bore (kg) | 1.9 |
| Coupling mass without bore (lbs) | 4.19 |
