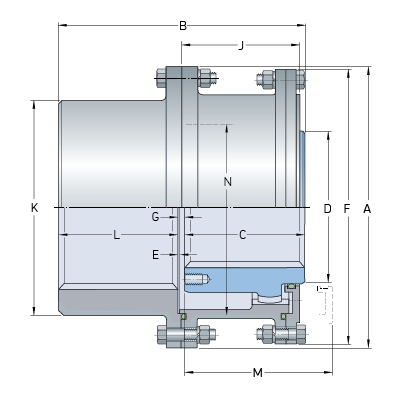

Gear coupling, single engagement, hub
PHE 120GCSERSB
Gear coupling, single engagement, hub
PHE 120GCSERSB
| Size | 120 GCSE |
| Power per 100 r/min (kW) | 5810 |
| Power per 100 r/min (HP) | 7788.2 |
| Rated torque (Nm) | 555000 |
| Rated torque (lbft) | 409346.99 |
| Speed Max. (r/min) | 1200 |
| Bore diameter Flex hub Max. (mm) | 425 |
| Bore diameter Flex hub Max. (in) | 16.73 |
| Bore diameter Se hub Max. (mm) | 495 |
| Bore diameter Se hub Max. (in) | 19.49 |
| Bore diameter Min. (mm) | 152 |
| Bore diameter Min. (in) | 5.98 |
| A (mm) | 838 |
| A (in) | 32.99 |
| B (mm) | 722 |
| B (in) | 28.43 |
| C (mm) | 353 |
| C (in) | 13.9 |
| D (mm) | 546 |
| D (in) | 21.5 |
| E (mm) | - |
| E (in) | - |
| F (mm) | 826 |
| F (in) | 32.52 |
| H (mm) | - |
| H (in) | - |
| J (mm) | 341 |
| J (in) | 13.43 |
| K (mm) | 647.7 |
| K (in) | 25.5 |
| L (mm) | 353 |
| L (in) | 13.9 |
| M (mm) | 403 |
| M (in) | 15.87 |
| Q (mm) | - |
| Q (in) | - |
| Gap G Min. (mm) | 16 |
| Gap G Min. (in) | 0.63 |
| Lubricant mass (kg) | 10.89 |
| Lubricant mass (lbs) | 24.01 |
| Coupling mass without bore (kg) | 2077.5 |
| Coupling mass without bore (lbs) | 4580.1 |
Please note:
A complete single engagement gear coupling, size below 80, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (GC) and 1 assembly kit (GC).
A complete single engagement gear coupling, size 80 and above, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (1 GCM, 1 GCF) and 1 assembly kit (GC).
A complete single engagement gear coupling, size below 80, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (GC) and 1 assembly kit (GC).
A complete single engagement gear coupling, size 80 and above, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (1 GCM, 1 GCF) and 1 assembly kit (GC).
