Gear coupling, single engagement, hub
PHE 30GCSERSB
Gear coupling, single engagement, hub
PHE 30GCSERSB

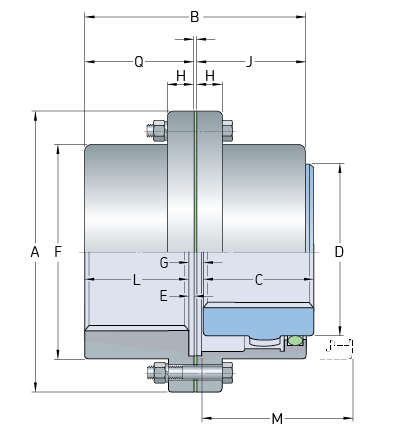

| Size | 30 GCSE |
| Power per 100 r/min (kW) | 127 |
| Power per 100 r/min (HP) | 170.24 |
| Rated torque (Nm) | 12100 |
| Rated torque (lbft) | 8924.5 |
| Speed Max. (r/min) | 4400 |
| Bore diameter Flex hub Max. (mm) | 105 |
| Bore diameter Flex hub Max. (in) | 4.13 |
| Bore diameter Se hub Max. (mm) | 130 |
| Bore diameter Se hub Max. (in) | 5.12 |
| Bore diameter Min. (mm) | 38 |
| Bore diameter Min. (in) | 1.5 |
| A (mm) | 240 |
| A (in) | 9.45 |
| B (mm) | 184 |
| B (in) | 7.24 |
| C (mm) | 91 |
| C (in) | 3.58 |
| D (mm) | 152 |
| D (in) | 5.98 |
| E (mm) | 2.5 |
| E (in) | 0.1 |
| F (mm) | 180 |
| F (in) | 7.09 |
| H (mm) | 21.8 |
| H (in) | 0.86 |
| J (mm) | 84 |
| J (in) | 3.31 |
| K (mm) | - |
| K (in) | - |
| L (mm) | 88 |
| L (in) | 3.46 |
| M (mm) | 107 |
| M (in) | 4.21 |
| Q (mm) | 90 |
| Q (in) | 3.54 |
| Gap G Min. (mm) | 5 |
| Gap G Min. (in) | 0.2 |
| Lubricant mass (kg) | 0.18 |
| Lubricant mass (lbs) | 0.4 |
| Coupling mass without bore (kg) | 43.1 |
| Coupling mass without bore (lbs) | 95.02 |
Please note:
A complete single engagement gear coupling, size below 80, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (GC) and 1 assembly kit (GC).
A complete single engagement gear coupling, size 80 and above, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (1 GCM, 1 GCF) and 1 assembly kit (GC).
A complete single engagement gear coupling, size below 80, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (GC) and 1 assembly kit (GC).
A complete single engagement gear coupling, size 80 and above, consists of 2 hubs (1 GCSE, 1 GC), 2 covers (1 GCM, 1 GCF) and 1 assembly kit (GC).
