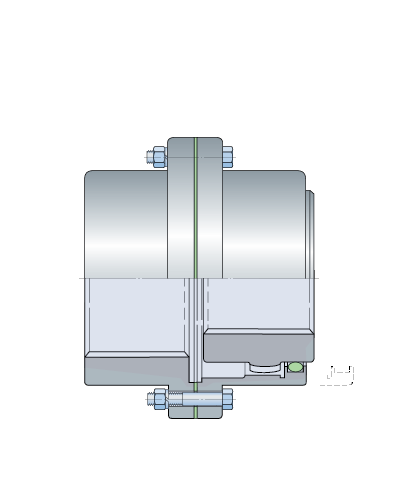

Gear coupling, single and double engagement, assembly kit
PHE 10GCKIT
Gear coupling, single and double engagement, assembly kit
PHE 10GCKIT
| Size | 10 GC |
| Power per 100 r/min (kW) | 11.9 |
| Power per 100 r/min (HP) | 15.95 |
| Rated torque (Nm) | 1139 |
| Rated torque (lbft) | 840.08 |
| Speed Max. (r/min) | 8000 |
| Bore diameter Min. (mm) | 13 |
| Bore diameter Min. (in) | 0.51 |
| Bore diameter Max. (mm) | 50 |
| Bore diameter Max. (in) | 1.97 |
| A (mm) | 116 |
| A (in) | 4.57 |
| B (mm) | 89 |
| B (in) | 3.5 |
| C (mm) | 43 |
| C (in) | 1.69 |
| D (mm) | 69 |
| D (in) | 2.72 |
| F (mm) | 84 |
| F (in) | 3.31 |
| H (mm) | 14 |
| H (in) | 0.55 |
| J (mm) | 39 |
| J (in) | 1.54 |
| M (mm) | 51 |
| M (in) | 2.01 |
| Gap G Min. (mm) | 3 |
| Gap G Min. (in) | 0.12 |
| Lubricant mass (kg) | 0.04 |
| Lubricant mass (lbs) | 0.09 |
| Coupling mass without bore and min. DBSE (kg) | 5 |
| Coupling mass without bore and min. DBSE (lbs) | 11.02 |
