Conveyor chains seria Lumber mill
PHC 441.100RX5MTR
Conveyor chains seria Lumber mill
PHC 441.100RX5MTR

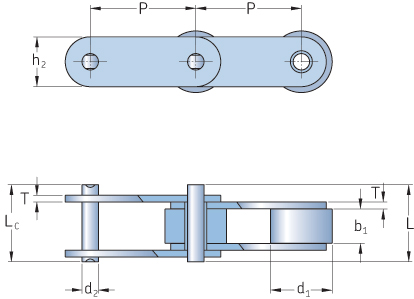

| Pitch P (mm) | 100 |
| Pitch P (in) | 3.94 |
| Roller diameter d1 max (mm) | 25.4 |
| Roller diameter d1 max (in) | 1 |
| Width between inner plates b1 min (mm) | 25.4 |
| Width between inner plates b1 min (in) | 1 |
| Pin diameter d2 max (mm) | 14.63 |
| Pin length L max (mm) | 52 |
| Pin length L max (in) | 2.05 |
| Pin length Lc max (mm) | 56.4 |
| Pin length Lc max (in) | 2.22 |
| Inner plate height h2 max | 40 |
| Inner plate height h2 max (in) | 1.57 |
| Plate thickness T max (mm) | 5 |
| Plate thickness T max (in) | 0.2 |
| Ultimate tensile strength Q min kN | 100 |
| Ultimate tensile strength Q min (lb) | 22480.89 |
| Average tensile strength Qo (kN) | 114.5 |
| Average tensile strength Qo (lb) | 4.51 |
| Weight (kg/m) | 5.15 |
| Weight (lbs/ft) | 3.46 |
