Chains
Roller chains
PHC 10B-1SBX10FT
Roller chains
PHC 10B-1SBX10FT

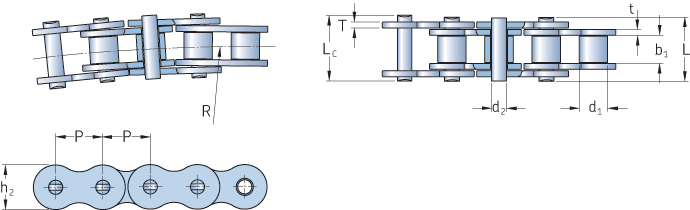

| Pitch P (mm) | 15.88 |
| Pitch P (in) | 0.63 |
| Roller diameter d1 max (mm) | 10.16 |
| Roller diameter d1 max (in) | 0.4 |
| Width between inner plates b1 max (mm) | 9.65 |
| Width between inner plates b1 max (in) | 0.38 |
| Pin diameter d2 max (mm) | 4.5 |
| Pin diameter d2 max (in) | 0.18 |
| Plate height h2 max (mm) | 14.7 |
| Plate height h2 max (in) | 0.58 |
| Plate thickness T max (mm) | 1.7 |
| Plate thickness T max (in) | 0.07 |
| Weight (kg/m) | 0.93 |
| Weight (lbs/ft) | 0.69 |
