Pulleys
8V section QD bushed
PHP 5-8V4000-M
8V section QD bushed
PHP 5-8V4000-M

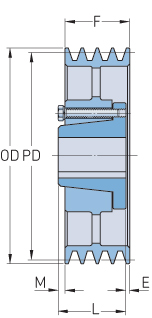

| Pitch diameter (mm) | 1010.92 |
| Pitch diameter (in) | 39.8 |
| Outside diameter (mm) | 1016 |
| Outside diameter (in) | 40 |
| Pulley type | B-3 |
| Bushing no. | M |
| Min. bore (mm) | 50.8 |
| Min. bore (in) | 2 |
| Max. bore (mm) | 139.7 |
| Max. bore (in) | 5.5 |
| F (in) | 6 |
| E (in) | (11/32) |
| L (in) | 6 (3/4) |
| M (in) | 1 (3/32) |
| Weight (lbs) | 749.6 |
