Pulleys - PHP 4-8V1320-F
Pulleys
8V section QD bushed

PHP 4-8V1320-F
Print
Back
Pitch diameter (mm) 330.2
Pitch diameter (in) 13
Outside diameter (mm) 335.28
Outside diameter (in) 13.2
Pulley type D-2
Bushing no. F
Min. bore (mm) 25.4
Min. bore (in) 1
Max. bore (mm) 101.6
Max. bore (in) 4

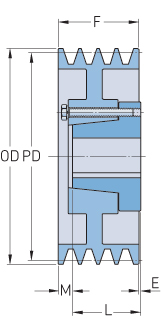

F (in) 4 (7/8)
E (in) (5/32)
L (in) 3 (3/4)
M (in) 1 (9/32)
Weight (lbs) 178.6
PHP 4-8V1320-F
