Chains
Silent chains
PHC CL08-28.5X10FT
Silent chains
PHC CL08-28.5X10FT

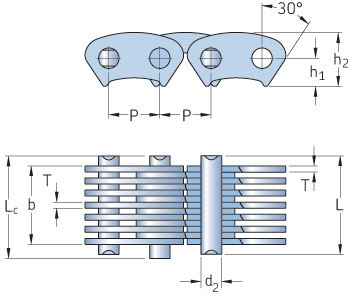

| Pitch P (mm) | 12.7 |
| Pitch P (in) | 0.5 |
| Pin diameter d2 max (mm) | 5.08 |
| Pin diameter d2 max (in) | 0.2 |
| Plate height h2 max (mm) | 13.4 |
| Plate height h2 max (in) | 0.53 |
| Plate thickness T max (mm) | 1.5 |
| Plate thickness T max (in) | 0.06 |
| Weight (kg/m) | 1.68 |
| Weight (lbs/ft) | 1.13 |
| Guide form | Inside |
| Chain width | 28.5 |
