Pulleys
HiTD Taper bushed 8M
PHP 90-8M-20TB
HiTD Taper bushed 8M
PHP 90-8M-20TB
| No. of teeth | 90 |
| Pitch diameter (mm) | 229.18 |
| Outside diameter (mm) | 227.81 |
| Pulley type | 12 |
| Bushing no. | 2012 |
| Min. bore (mm) | 16 |
| Max. bore (mm) | 50 |
| Flange A (mm) | - |

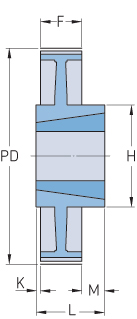

| H | 110 |
| F | 28 |
| K | - |
| L | 32 |
| M | 4 |
| Weight (kg) | 3.65 |
