Sprockets
Metric Duplex, Taper Bushed
PHS 16B-2TB15
Metric Duplex, Taper Bushed
PHS 16B-2TB15

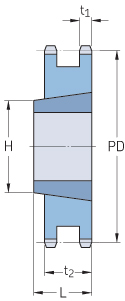

| Pitch P (mm) | 24.4 |
| Pitch P (in) | 0.96 |
| No. of teeth | 15 |
| Pitch diameter (mm) | 122.17 |
| Pitch diameter (in) | 4.81 |
| Min. bore (mm) | 14 |
| Min. bore (in) | 0.55 |
| Max. bore (mm) | 50.8 |
| Max. bore (in) | 2 |
| Hub H (mm) | - |
| Hub H (in) | - |
| Hub L (mm) | 47.7 |
| Hub L (in) | 1.88 |
| Weight (kg) | 2.12 |
| Weight (lbs) | 4.67 |
| Bushing no. | 2012 |
| Type | A |
