Sprockets
Metric Duplex, Taper Bushed
PHS 08B-2TB21
Metric Duplex, Taper Bushed
PHS 08B-2TB21

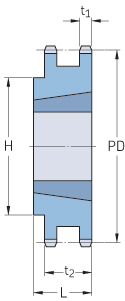

| Pitch P (mm) | 12.7 |
| Pitch P (in) | 0.5 |
| No. of teeth | 21 |
| Pitch diameter (mm) | 12.7 |
| Pitch diameter (in) | 0.5 |
| Min. bore (mm) | 14 |
| Min. bore (in) | 0.55 |
| Max. bore (mm) | 41.3 |
| Max. bore (in) | 1.63 |
| Hub H (mm) | 70 |
| Hub H (in) | 2.76 |
| Hub L (mm) | 25 |
| Hub L (in) | 0.98 |
| Weight (kg) | 0.48 |
| Weight (lbs) | 1.06 |
| Bushing no. | 1610 |
| Type | B |
