Chains
Leaf chains
PHC FL644X5MTR
Leaf chains
PHC FL644X5MTR

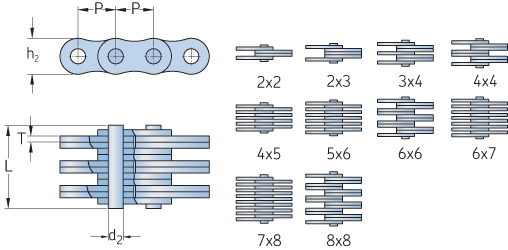

| Pitch P (mm) | 5.94 |
| Pitch P (in) | 0.23 |
| Pin diameter d2 max (mm) | 1.85 |
| Pin diameter d2 max (in) | 0.07 |
| Plate height h2 max (mm) | 4.7 |
| Plate height h2 max (in) | 0.19 |
| Plate thickness T max (mm) | 0.6 |
| Plate thickness T max (in) | 0.02 |
| Weight (kg/m) | 0.13 |
| Weight (lbs/ft) | 0.09 |
